OSRM with Telenav Traffic Design (Draft)

Architecture

osrm-with-telenav-traffic-architecture

OSRMTrafficUpdater

  • as client
  • connect TrafficProxy by RPC
  • convert contents from RPC protocol to OSRM required csv format, then write to file

TrafficProxy

  • as server
  • provide traffic contents by region
  • contents include at least from node, to node, speed(both from node and to node are come from original mapdata)

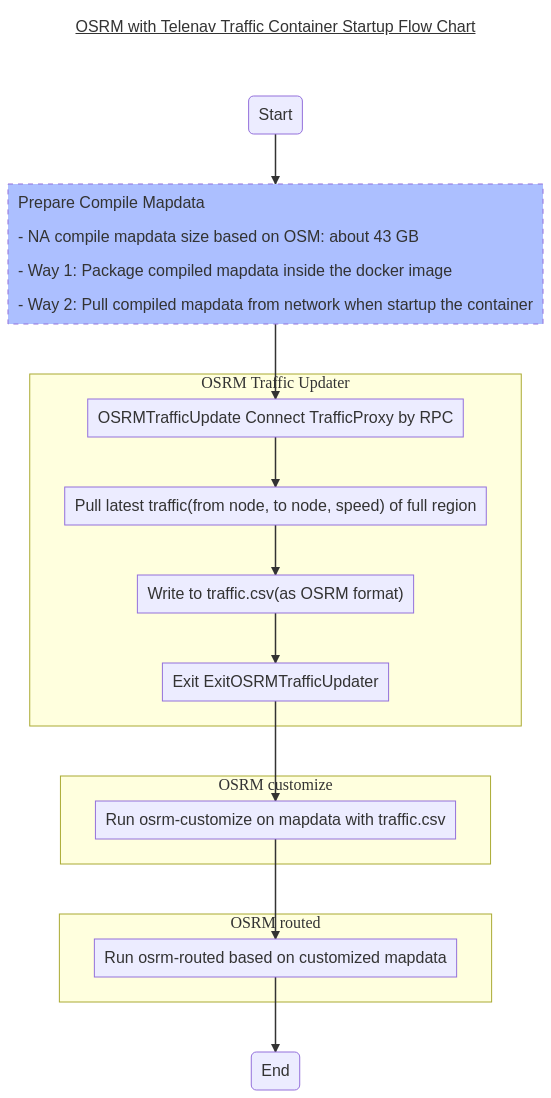

OSRM with Traffic Startup Flow

osrm-with-traffic-startup-flow-chart

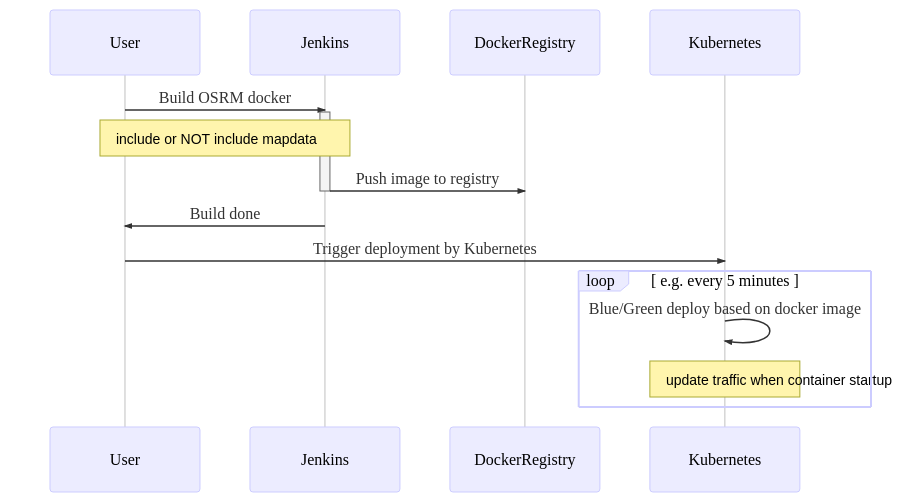

Release and Deployment Pipeline

osrm-release-deployment-pipeline
