OSRM with Telenav Traffic Design

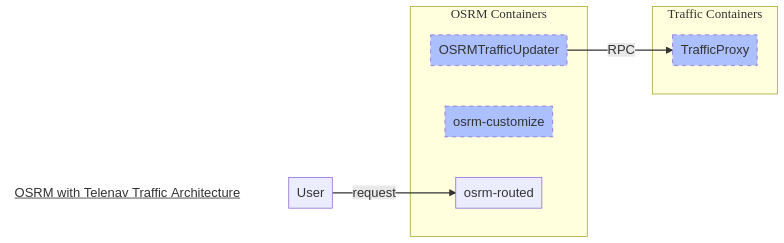

Architecture

osrm-with-telenav-traffic-architecture

OSRMTrafficUpdater

  • as RPC client
  • connect TrafficProxy by RPC
  • convert contents from RPC protocol to OSRM required csv format, then write to file

TrafficProxy

  • as RPC server
  • provide traffic contents by region
  • contents include at least +/-wayid, speed

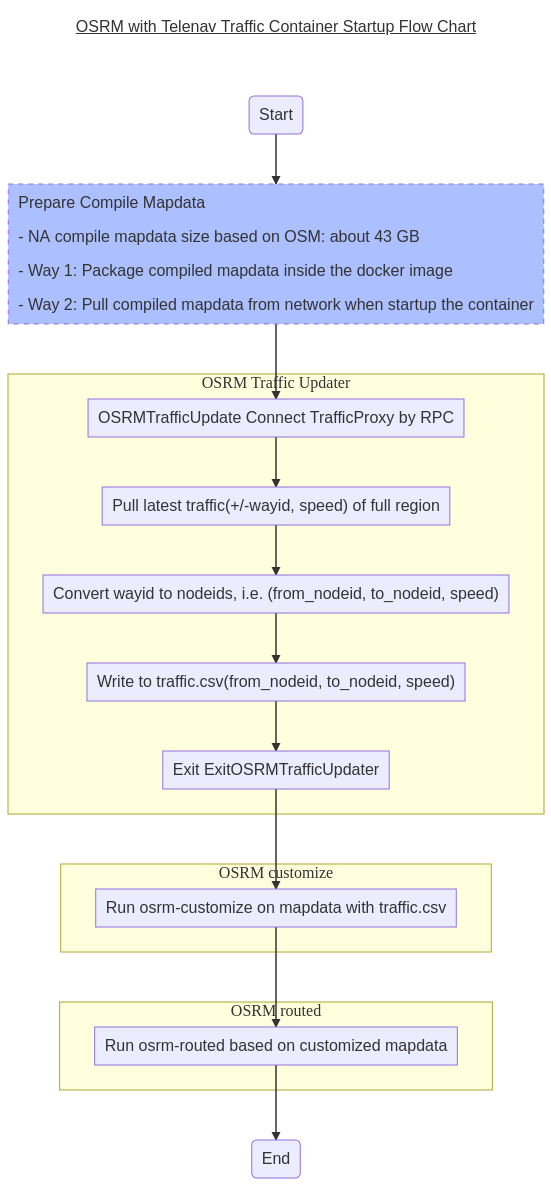

OSRM with Traffic Startup Flow

osrm-with-traffic-startup-flow-chart

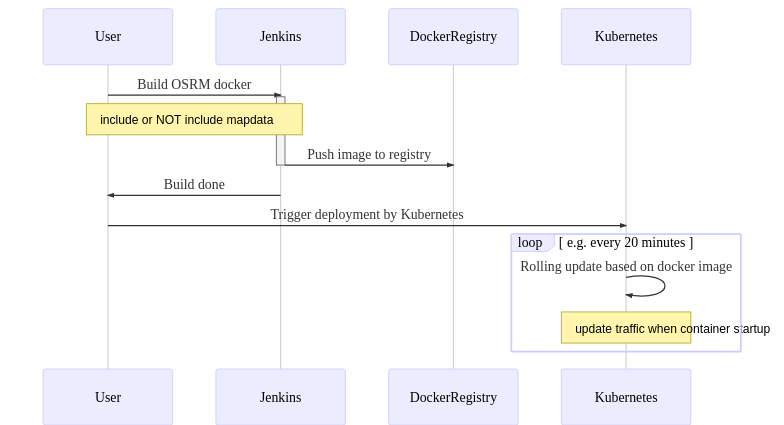

Release and Deployment Pipeline

osrm-release-deployment-pipeline
